Find A Mate
Find A Mate is a useful feature if you already have an IRISO part and are looking for a mate. Instead of showing products that match your filter criteria, we show products that mate with your filter criteria.
Find A MateNo Thanks
| No. | Image | Part No. | Series | Base Type No. | Part Height | Mate Height | Floating | Connection Orientation | Pitch | Pin Count | Plating | Mount | Boss Type | Beryllium & Halogen Free | Vacuum Tape Included | Terminal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |  |

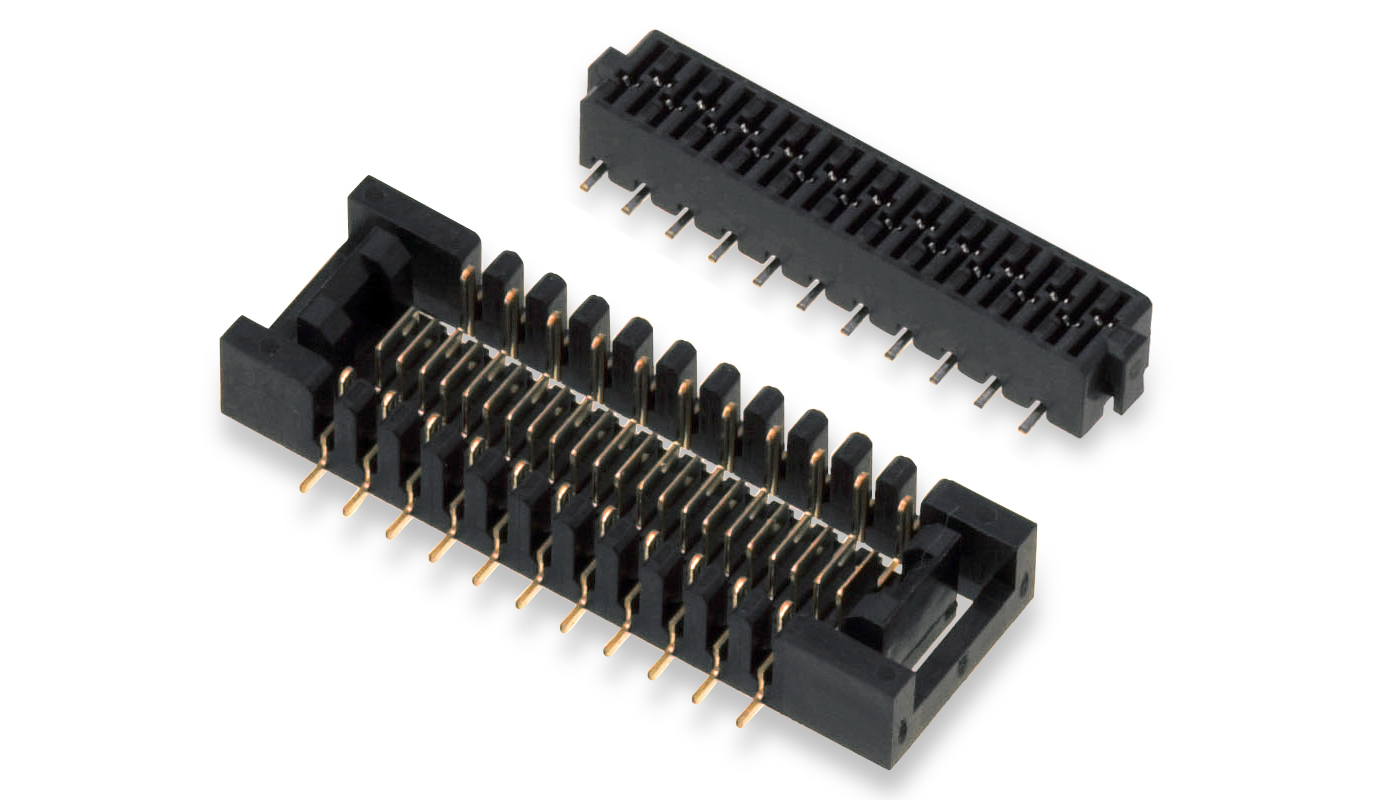

IMSA-9851B-30Y918 | 9851 | M | 5.0MM | 5.5MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 2 | |
IMSA-9851B-30Z906 | 9851 | A | 5.0MM | 5.5MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | DIP/Through-hole | - | Yes | No | Phosphor Bronze |
| 3 |  |

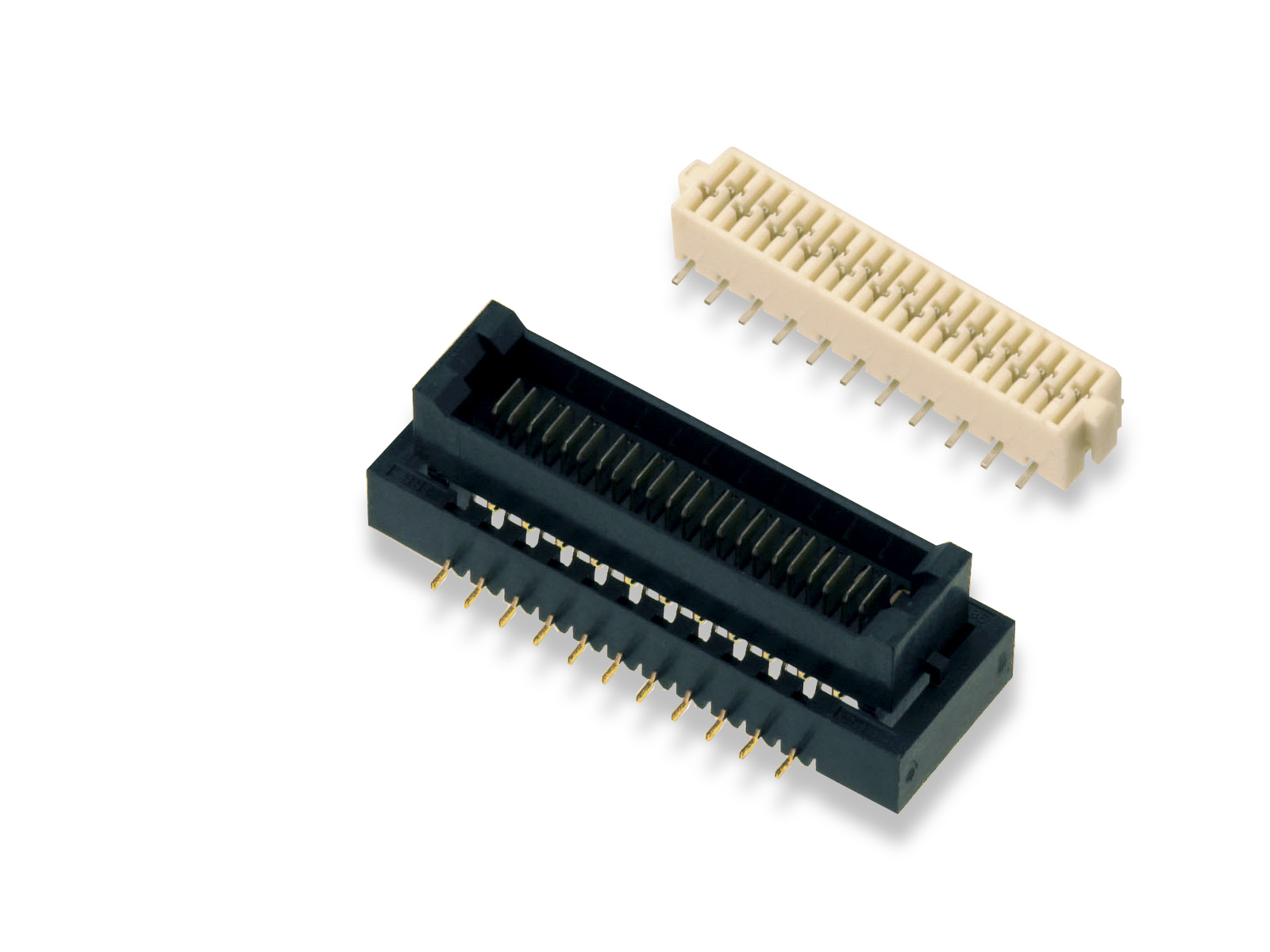

IMSA-9855B-30Y938 | 9855 | Z12 | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 4 | |
IMSA-9855B-30Y944 | 9855 | Z13 | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | SMT | Non | Yes | Yes | Phosphor Bronze |
| 5 | |
IMSA-9855B-30Z905 | 9855 | D | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | DIP/Through-hole | - | Yes | No | Phosphor Bronze |
| 6 | |
IMSA-9855B-30Z910 | 9855 | B | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | DIP/Through-hole | Lock | Yes | No | Phosphor Bronze |
| 7 | |
IMSA-9855B-30Z912 | 9855 | B | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | DIP/Through-hole | Lock | Yes | No | Phosphor Bronze |
| 8 | |
IMSA-9855B-30Z914 | 9855 | G | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | SMT | Location pin | Yes | No | Phosphor Bronze |
| 9 | |
IMSA-9855B-30Z900 | 9855 | B | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | DIP/Through-hole | Lock | Yes | No | Phosphor Bronze |
| 10 | |
IMSA-9855B-30Y925 | 9855 | Z12 | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 11 | |
IMSA-9855B-30Y928 | 9855 | Z13 | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | SMT | Non | Yes | Yes | Phosphor Bronze |
| 12 | |
IMSA-9855B-30Y930 | 9855 | Z12 | 10.0MM | 10.5MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 13 |  |

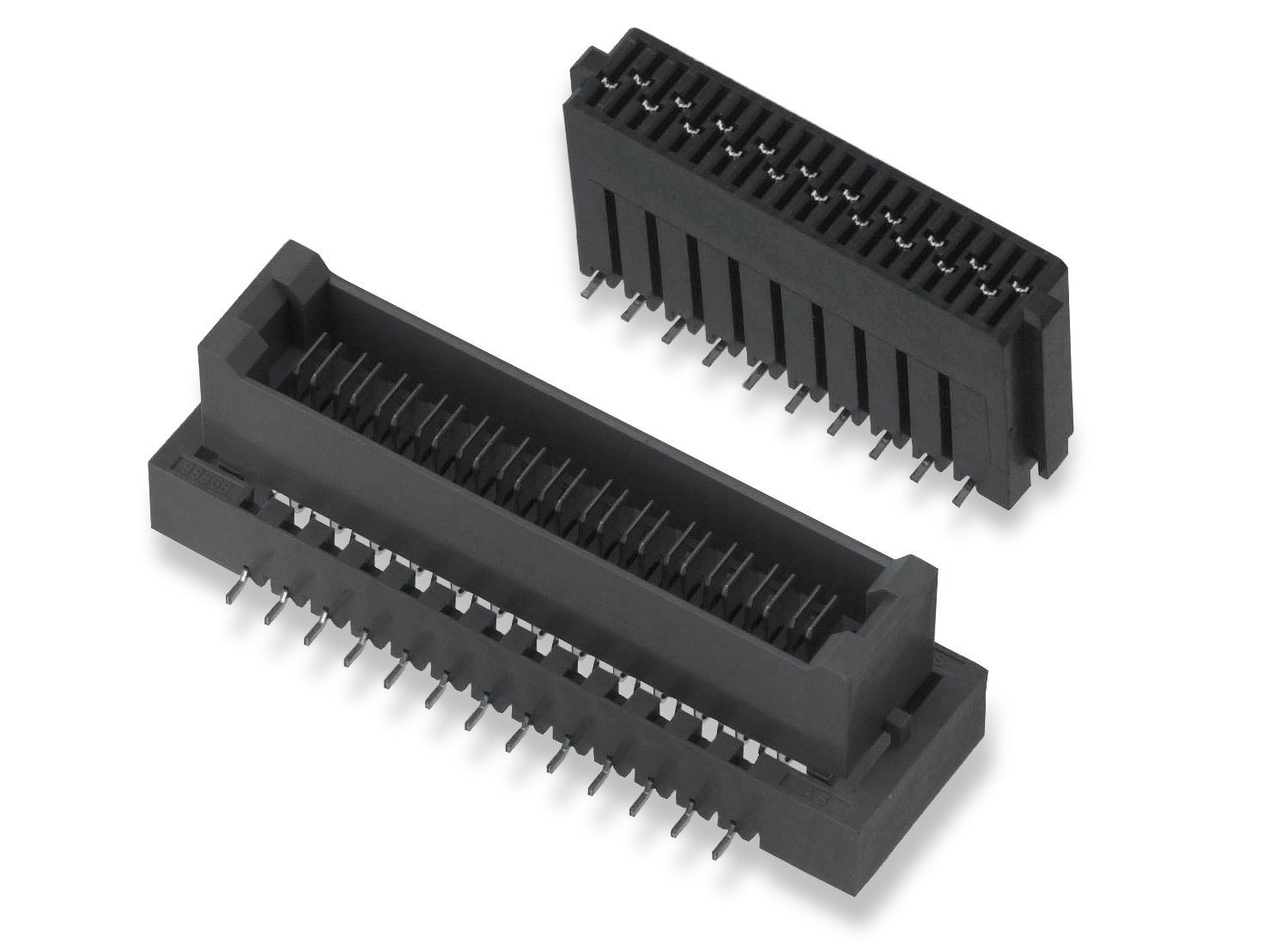

IMSA-9856B-30Y934 | 9856 | Z14 | 11.5MM | 12.0MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 14 | |
IMSA-9856B-30Y935 | 9856 | Z14 | 11.5MM | 12.0MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 15 | |
IMSA-9856B-30Y950 | 9856 | Z14 | 11.5MM | 12.0MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 16 | |
IMSA-9856B-30Y972 | 9856 | Z14 | 11.5MM | 12.0MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 17 | |
IMSA-9856B-30Y946 | 9856 | Z14 | 11.5MM | 12.0MM | Yes | Straight/Vertical | 1.0 | 30 | Gold | SMT | Location pin | Yes | Yes | Phosphor Bronze |
| 18 | |
IMSA-9856B-30Z908 | 9856 | Z13 | 11.5MM | 12.0MM | Yes | Straight/Vertical | 1.0 | 30 | Tin | DIP/Through-hole | Lock | Yes | No | Phosphor Bronze |
| No. | Image | Part No. | Series | Base Type No. | Part Height | Mate Height | Floating | Connection Orientation | Pitch | Pin Count | Plating | Mount | Boss Type | Beryllium & Halogen Free | Vacuum Tape Included | Terminal Material |
